5-SK004
Model
RAM Heavy Duty
Part No. 5-SK004

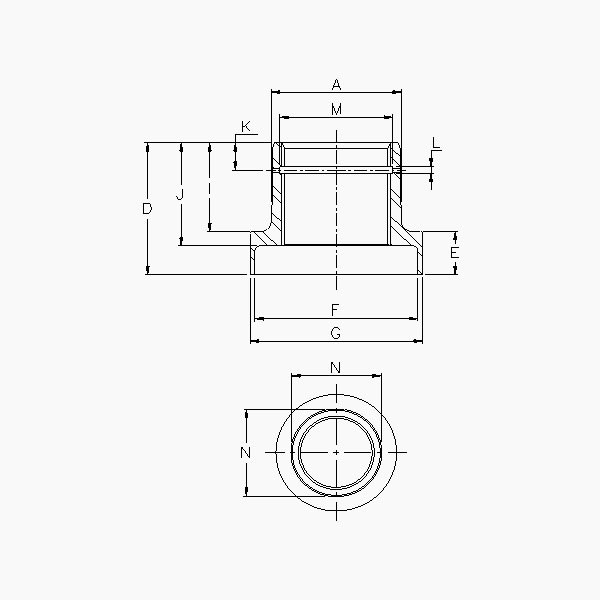

Outer Dia. ( A ) Ø61.1 ~ Ø60.9
Outer Dia. ( B )
Spline
Spec.
 Type Fillet Root Side Fit
No. of Teeth 49
Module 1
Pressure Angle 30°
Major Dia. Ø50.91 Max.
Minor Dia. Ø48.24 ~ Ø48.05
Over Pin Dia. Ø45.753 Ref.
Pin Dia. Ø2.0
Length ( C )
Length ( D ) 43.1 ~ 42.9
Length ( E ) 21.25 ~ 20.75
Inner Dia. ( F ) Ø76.34 ~ Ø76.14
Outer Dia. ( G ) 80.8 ±0.1
Length ( H )
Length ( I ) 43.1 ~ 42.9
Spline Length ( J ) 50.2 ~ 49.8
Length ( K ) 13.3 ~ 13.1
Groove Width ( L ) 3.05 ~ 2.95
Groove Dia. ( M ) Ø53.25 ~ Ø52.75
Length ( N ) 60.1 ~ 59.9
 Plating
Material Forging
Weight 0.578 kg
 Package Qty.
