5-SK003
Model
RAM Heavy Duty
Part No. 5-SK003

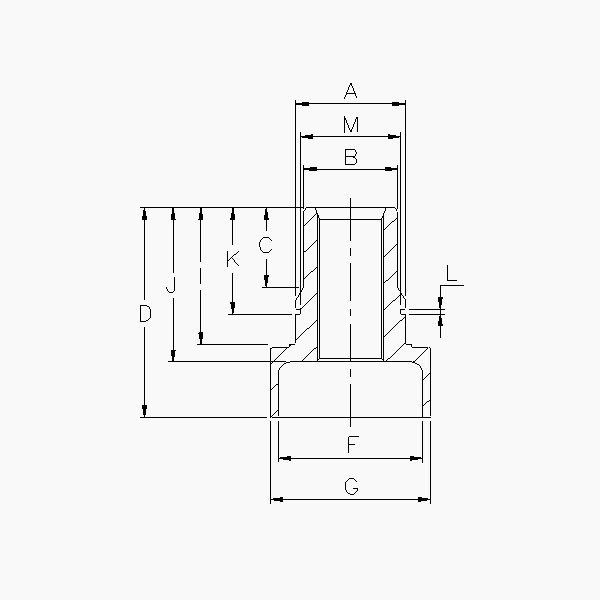

Outer Dia. ( A ) Ø35.020 ~ Ø35.004
Outer Dia. ( B ) Ø30.20 ~ Ø29.80
Spline
Spec.
 Type Fillet Root Side Fit
No. of Teeth 27
Module 0.75
Pressure Angle 45°
Major Dia. Ø21.28
Minor Dia. Ø19.787 ~ Ø19.660
Over Pin Dia. Ø17.050
Pin Dia. Ø1.800
Length ( C ) 26.9
Length ( D ) 70.83 ~ 70.63
Length ( E )
Inner Dia. ( F ) Ø46.7 ~ Ø46.5
Outer Dia. ( G ) Ø50.7 ~ Ø50.5
Length ( H )
Length ( I ) 46.21 ~ 46.01
Spline Length ( J ) 52.1 ~ 51.9
Length ( K ) 36.0 ~ 35.8
Groove Width ( L ) 1.75 ~ 1.65
Groove Dia. ( M ) Ø32.30 ~ Ø32.05
Length ( N )
 Plating Electroless Nickel Plating
Material Forging
Weight 0.287 kg
 Package Qty.
