7-SK003
Model
ATS, CTS, CT5, CT4
Part No. 7-SK003

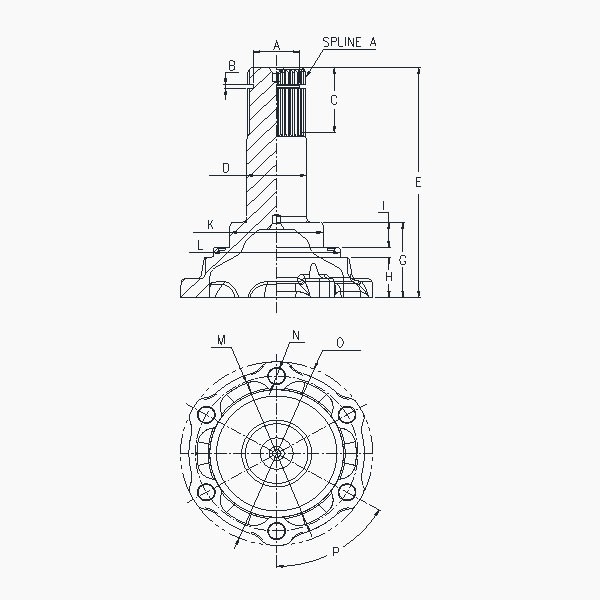

Spline A
Spline
Spec.		 Type
No. of Teeth33
Module24 / 48
Pressure Angle45°
Major Dia.Ø35.99 ~ Ø35.73
Minor Dia.Ø33.76 ~ Ø33.63
Helix Angle
Over Pin Dia.Ø38.275 ~ Ø38.245
Pin Dia.Ø2.032
Groove Dia. (A)Ø28.66 ~ Ø28.46
Groove Width (B)2.4 ~ 2.2
Spline Length (C)42.5 ~ 41.5
Outer Dia. (D)Ø37.082 ~ Ø37.066
Length (E)148.488 ~ 147.988
Length (F)
Length (G)48.6 ~ 48.4
Length (H)26.1 ~ 25.9
Spline Length (J)
Outer Dia. (K)Ø57.26 ~ Ø57.14
Tap P.C.D (M)Ø114
Tap Spec. (N)M10 × 1.5 - 6H
Outer Dia. (O)Ø118.3
Angle (P)60°
Heat TreatmentInduction Hardened
MaterialForging
Weight1.73 kg
Package Qty.
