7-SK002
Model
ATS, CTS, CT5, CT4
Part No. 7-SK002

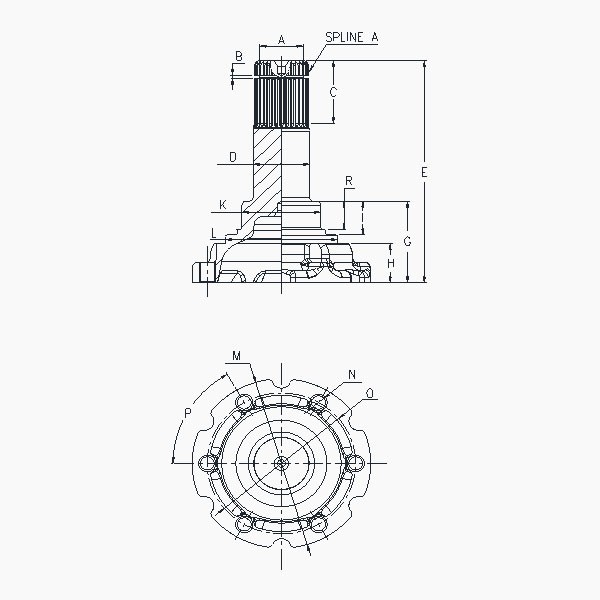

Spline A Spline B
Spline
Spec.		 Type
No. of Teeth32
Module24 / 48
Pressure Angle30°
Major Dia.Ø35.99 ~ Ø35.73
Minor Dia.Ø33.76 ~ Ø33.63
Helix Angle0°18′ ± 0°2′ RH
Over Pin Dia.Ø38.275 ~ Ø38.245
Pin Dia.Ø2.032
Groove Dia. (A)Ø27.6 ~ Ø27.4
Groove Width (B)2.4 ~ 2.2
Spline Length (C)42.5 ~ 41.5
Outer Dia. (D)Ø35.945 ~ Ø35.929
Length (E)148.59 ~ 148.09
Length (F)
Length (G)54.64 ~ 54.44
Length (H)26.1 ~ 25.9
Spline Length (J)
Outer Dia. (K)Ø49.98 ~ Ø49.86
Tap P.C.D (M)Ø94
Tap Spec. (N)M10 × 1.5 - 6H
Outer Dia. (O)Ø113.1
Angle (P)60°
Heat TreatmentInduction Hardened
MaterialForging
Weight1.7 kg
Package Qty.
