40-SK010
Model
Spark, Aveo, Cobalt, Spin, Encore, Onix, Prisma
Part No. 40-SK010

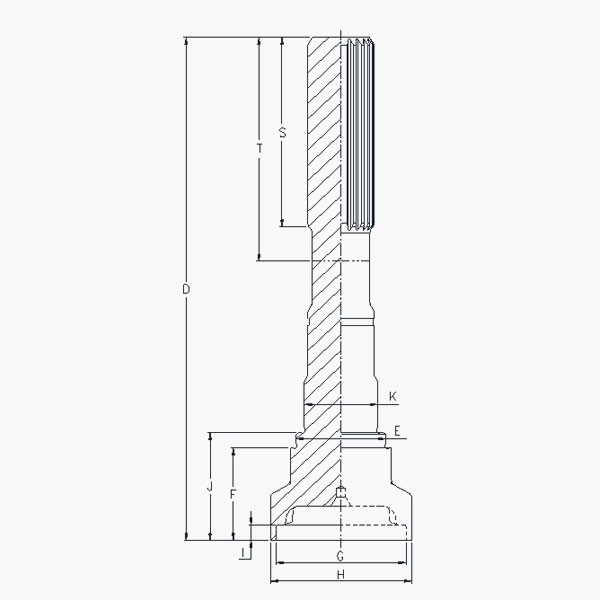

Spline Spec. Major Dia. Fit
Flange Face ( D ) 22
Pilot Dia. ( E ) 16 / 32
Bolt Hole Length ( F ) 30°
Flange Swing Dia. ( G ) Ø36.4940 ~ Ø36.4690
Bolt Hole Dia ( H ) Ø32.4358 Min.
Number of Bolt Hole
Material
Groove Dia. ( A )
Length ( B )
Groove Width ( C )
Length ( D ) 292.3 ±0.2
Outer Dia. ( E ) Ø49 +0.013 / +0.002
Length ( F ) 53.6
Inner Dia. ( G ) Ø71.2 ±0.2
Outer Dia. ( H ) Ø77.2 ±0.2
Length ( I ) 9 Min.
Length ( J ) 62.6
Outer Dia. ( K ) Ø40 +0.013 / +0.002
Outer Dia. ( M )
Length ( N )
Length ( O )
Thread Spec. ( Q )
Length ( R )
Spline Length ( S ) 110.0
Coating Length ( T ) 120 +25.4 / -0
Angle ( U )
Hole Dia. ( V )
Material Forging
Weight 2.525 kg
Package Qty.
