40-SK009
Model
Spark, Aveo, Cobalt, Spin, Encore, Onix, Prisma
Part No. 40-SK009
Spline Spec. Fillet Root Side Fit
Flange Face ( D ) 22
Pilot Dia. ( E ) 1.0583
Bolt Hole Length ( F ) 45°
Flange Swing Dia. ( G ) Ø24.33 ~ Ø24.21
Bolt Hole Dia ( H ) Ø22.00 Min.
Number of Bolt Hole Ø26.637
Material Ø2.032

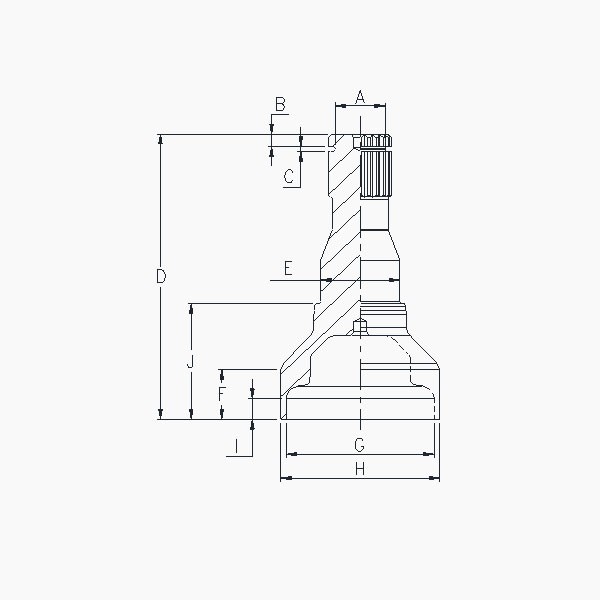

Groove Dia. ( A ) Ø19.2 ~ Ø18.8
Length ( B ) 5
Groove Width ( C ) 2.13 ~ 1.73
Length ( D ) 104.16
Outer Dia. ( E ) Ø30.013 ~ Ø30.002
Length ( F ) 20 Min.
Inner Dia. ( G ) Ø66.7 ~ Ø66.5
Outer Dia. ( H ) Ø70.9 ~ Ø70.7
Length ( I ) 5 Min.
Length ( J ) 46.3
Outer Dia. ( K )
Outer Dia. ( M )
Length ( N )
Length ( O )
Thread Spec. ( Q )
Length ( R )
Spline Length ( S )
Coating Length ( T )
Angle ( U )
Hole Dia. ( V )
Material Forging
Weight 0.65 kg
Package Qty.
