40-SK005
Model
Spark, Aveo, Cobalt, Spin, Encore, Onix, Prisma
Part No. 40-SK005

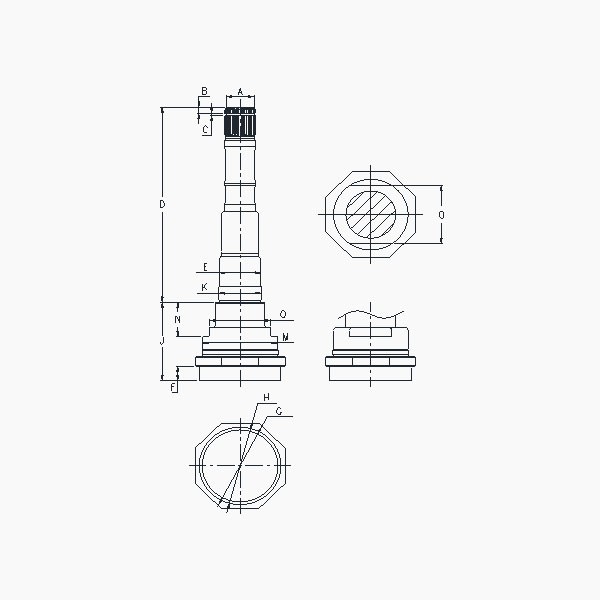

Spline Spec.
Flange Face ( D ) 26
Pilot Dia. ( E ) 32 / 64
Bolt Hole Length ( F ) 37.5°
Flange Swing Dia. ( G ) Ø21.423 +0 / -0.250
Bolt Hole Dia ( H ) Ø19.357 +0.200 / -0
Number of Bolt Hole Ø23.060 +0.058 / -0
Material Ø1.524
Groove Dia. ( A ) Ø20 +0 / -0.21
Length ( B ) 4.9 ±0.3
Groove Width ( C ) 1.4 +0.15 / -0
Length ( D ) 146.5
Outer Dia. ( E ) Ø29.5 +0.019 / +0.006
Length ( F ) 11
Inner Dia. ( G ) Ø53.85 +0.1 / -0.3
Outer Dia. ( H ) Ø58.1 ±0.1
Length ( I )
Length ( J ) 59
Outer Dia. ( K ) Ø30j6 +0.009 / -0.004
Outer Dia. ( M ) Ø53 +0.10 / -0.05
Length ( N ) 26
Length ( O ) 43.7 ±0.1
Thread Spec. ( Q )
Length ( R )
Spline Length ( S )
Coating Length ( T )
Angle ( U )
Hole Dia. ( V )
Material Forging
Weight 1.01 kg
Package Qty.
