40-SK004
Model
Spark, Aveo, Cobalt, Spin, Encore, Onix, Prisma
Part No. 40-SK004
Spline Spec.
Flange Face ( D ) 34
Pilot Dia. ( E ) 0.794 / 0.397
Bolt Hole Length ( F ) 37.5°
Flange Swing Dia. ( G )
Bolt Hole Dia ( H )
Number of Bolt Hole Ø29.318 Min.
Material Ø1.5

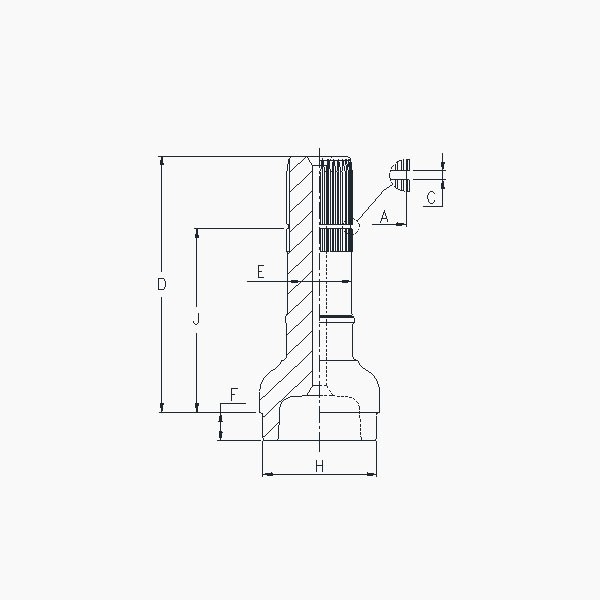

Groove Dia. ( A ) Ø26.20 ~ Ø25.95
Length ( B )
Groove Width ( C ) 2.02 ~ 1.77
Length ( D ) 115.1
Outer Dia. ( E ) Ø26.88 ~ Ø26.84
Length ( F ) 12.7
Inner Dia. ( G )
Outer Dia. ( H ) Ø48.05 ~ Ø47.95
Length ( I )
Length ( J ) 82.5
Outer Dia. ( K )
Outer Dia. ( M )
Length ( N )
Length ( O )
Thread Spec. ( Q )
Length ( R )
Spline Length ( S )
Coating Length ( T )
Angle ( U )
Hole Dia. ( V )
Material Forging
Weight 0.758 kg
Package Qty.
