8-SK005
Model
Spark, Aveo, Cobalt, Spin, Encore, Onix, Prisma
Part No. 8-SK005
 Plug Type
Spline

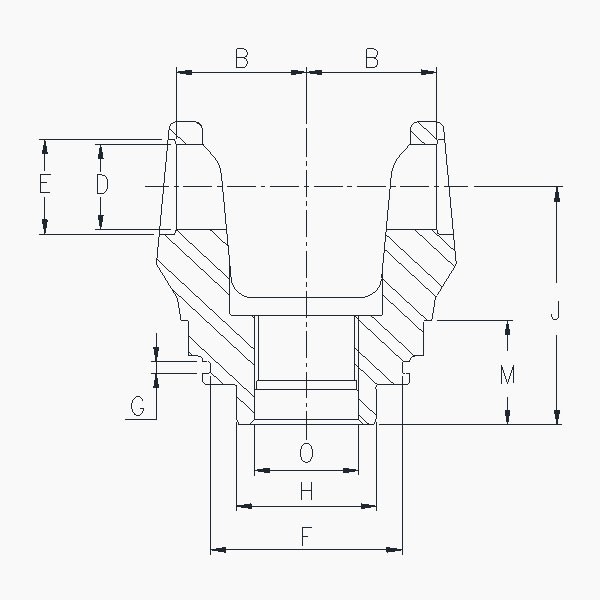

Spec		 Type Fillet Root Side Fit
No. of Teeth 26
Module 1
Pressure Angle 45°
Major Dia. Ø27.400 +0.08 / -0
Minor Dia. Ø25.4 +0.084 / -0
Over Pin Dia. Ø22.919 +0.093 / +0.051
Pin Dia. Ø2.0
Length ( A )
 Groove Length ( B ) 34.33 ±0.07
Inside Length ( C )
Yoke Bearing Dia. ( D ) Ø24F7 +0.041 / +0.020
 Inner Dia. ( E ) Ø26.5 +0.5 / -0
 Groove Dia. ( F ) Ø50.5 +0 / -0.6
Groove Width ( G ) 3.5 ±0.2
Outer Dia. ( H ) Ø37 ±0.05
 Outer Dia. ( I )
Length ( J ) 67.5 ±0.15
Length ( K )
 Length ( L )
Length ( M )
 Length ( N )
 Inner Dia. ( O ) Ø27.5 +0.04 / +0.02
  Length ( P )
  Material Forging
  Weight 0.952 kg
  Package Qty.
