8-SK004
Model
Spark, Aveo, Cobalt, Spin, Encore, Onix, Prisma
Part No. 8-SK004
 Plug Type
Spline

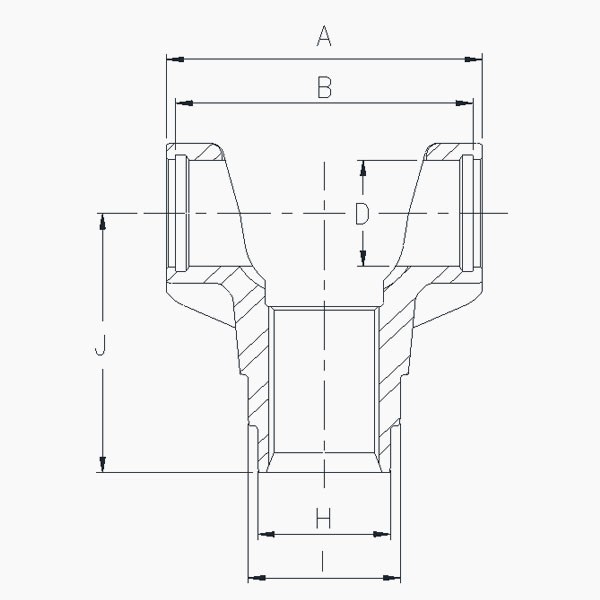

Spec		 Type Fillet Root Side Fit
No. of Teeth 23
Module 24 / 48
Pressure Angle 45°
Major Dia. Ø26.053 ~ Ø25.824
Minor Dia. Ø23.833 ~ Ø23.706
Over Pin Dia. Ø21.298 Max.
Pin Dia. Ø2.032
Length ( A ) 74.4 ±0.8
 Groove Length ( B ) 70.32 ±0.05
Inside Length ( C )
Yoke Bearing Dia. ( D ) Ø27 +0 / -0.018
 Inner Dia. ( E )
 Groove Dia. ( F )
Groove Width ( G )
Outer Dia. ( H ) Ø31.5 +0.05 / -0
 Outer Dia. ( I ) Ø39.72
Length ( J ) 66
Length ( K )
 Length ( L )
Length ( M )
 Length ( N )
 Inner Dia. ( O )
  Length ( P )
  Material Forging
  Weight 0.393 kg
  Package Qty.
