3-SK004
Model
Transit
Part No.3-SK004
ProgramGM T1XX
Series1350
PlatingElectroless Nickel Plating
Plug TypeNon-Vented
Spline Spec TypeMajor Dia. Fit
No. of Teeth32
Module24 / 48
Pressure Angle30°
Major Dia.Ø34.989 ~ Ø34.963
Minor Dia.Ø33.25 ~ Ø33.20
Over Pin Dia.
Pin Dia.

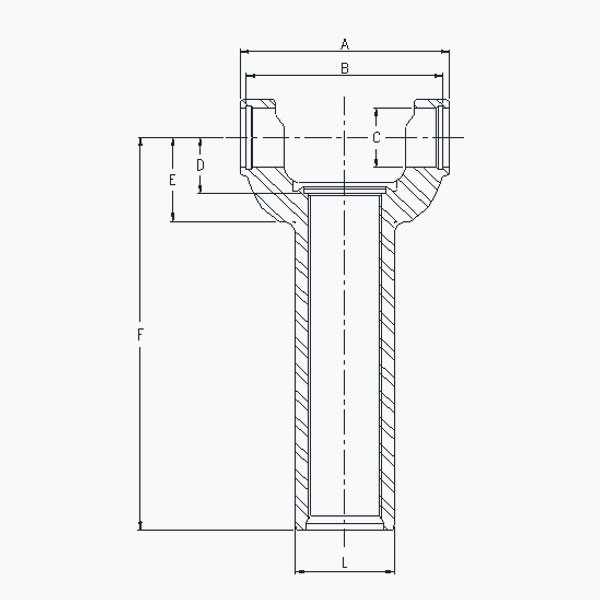

Length (A)101 ±0.3
Groove Length (B)95 ±0.05
Yoke Bearing Dia. (C)Ø30.181 ±0.013
Length (D)28.4
Length (E)42.7
Length (F)200 ±0.6
Outer Dia. (G)
Length (H)
Groove Width (I)
Groove Dia. (J)
Outer Dia. (K)
Outer Dia. (L)Ø47.892 ±0.013
MaterialCasting
Weight1.741 kg
