3-SK003
Model
Transit
Part No.3-SK003
ProgramFord Transit (V363 program)
Series1410
Plating
Plug TypeNon-Vented
Spline Spec TypeMajor Dia. Fit
No. of Teeth22
Module16 / 32
Pressure Angle30°
Major Dia.Ø36.522 ~ Ø36.494
Minor Dia.Ø33.4772 ~ Ø33.3502
Over Pin Dia.
Pin Dia.

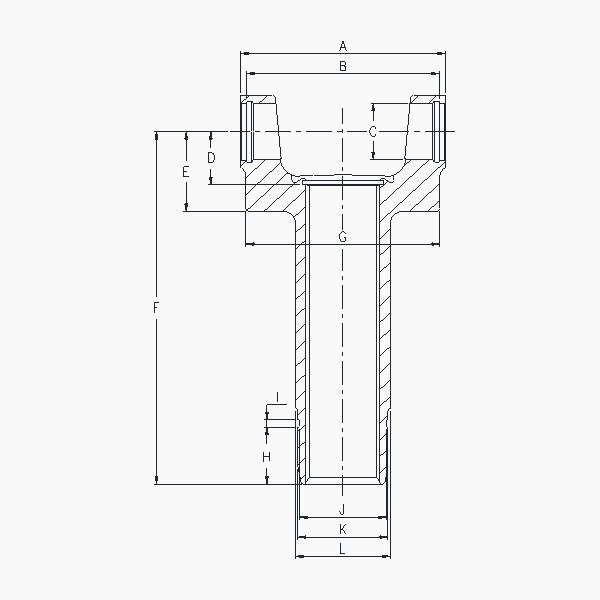

Length (A)115 ±0.6
Groove Length (B)109.3 ±0.05
Yoke Bearing Dia. (C)Ø30.181 ±0.013
Length (D)28.4
Length (E)42.7
Length (F)189 ±0.6
Outer Dia. (G)Ø108.46 ±0.05
Length (H)30.55
Groove Width (I)4
Groove Dia. (J)Ø43.3
Outer Dia. (K)Ø44.5
Outer Dia. (L)Ø47
MaterialCasting
Weight2.0 kg
Package Qty.
