1-SK004

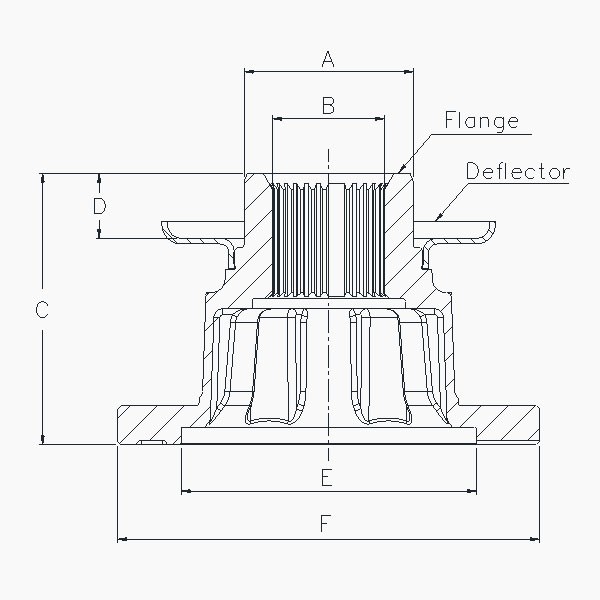

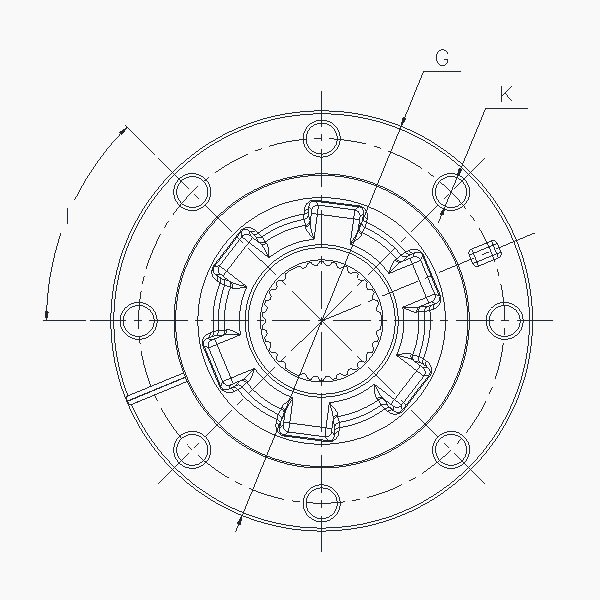

Model
Altima
Part No. 1-SK004
Outer Dia. ( A ) Ø53.95 ~ Ø53.83
Spline
Spec.
( B )		 Type Fillet Root Side Fit
No. of Teeth 30
Module 20 / 40
Pressure Angle 37.5˚
Major Dia. Ø39.581 ~ Ø39.560
Minor Dia. Ø37.211 ~ Ø37.084
Over Pin Dia. Ø35.151 Ref.
Pin Dia. Ø2.1946
Length ( C ) 90.50
Length ( D ) 22.21 ~ 21.21
Inner Dia. ( E ) Ø98.035 ~ Ø98.000
Outer Dia. ( F ) Ø140
Hole P . C . D ( G ) Ø121.5
Tap Spec. ( H )
Angle ( I ) 45˚
Groove Dia. ( J )
Hole Dia. ( K ) Ø10.55 ~ Ø10.25
Hole P . C . D ( L )
Hole Dia. ( M )
Length ( N )
Length ( O )
Groove Dia. ( P )
Number Of Bolt Hole 8
Material Casting
Weight 1.77 kg
Package Qty.
