1-SK003
Model
Altima
Part No. 1-SK003

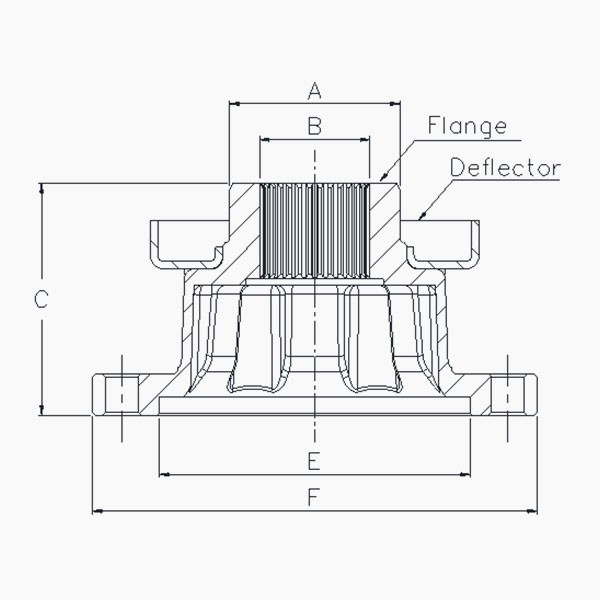

Outer Dia. ( A ) Ø53.70 ~ Ø53.59
Spline
Spec.
( B )		 Type Major Dia. Fit
No. of Teeth 32
Module 24 / 48
Pressure Angle 30˚
Major Dia. Ø34.659 ~ Ø34.653
Minor Dia. Ø32.884 ~ Ø32.860
Over Pin Dia. Ø30.641 Ref.
Pin Dia. Ø2.032
Length ( C ) 72.649
Length ( D )
Inner Dia. ( E ) Ø98.035 ~ Ø98.000
Outer Dia. ( F ) Ø140

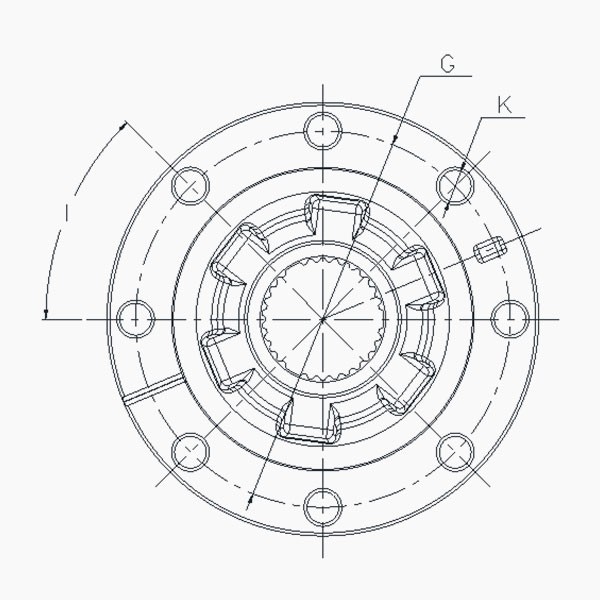

Hole P . C . D ( G ) Ø121.5
Tap Spec. ( H )
Angle ( I ) 45˚
Groove Dia. ( J )
Hole Dia. ( K ) Ø10.55 ~ Ø10.25
Hole P . C . D ( L )
Hole Dia. ( M )
Length ( N )
Length ( O )
Groove Dia. ( P )
Number Of Bolt Hole 8
Material Casting
Weight 1.7 kg
Package Qty.
