2-SK024
Model
RAM Heavy Duty
Part No.2-SK024
ProgramFCA RAM HD
Series1550

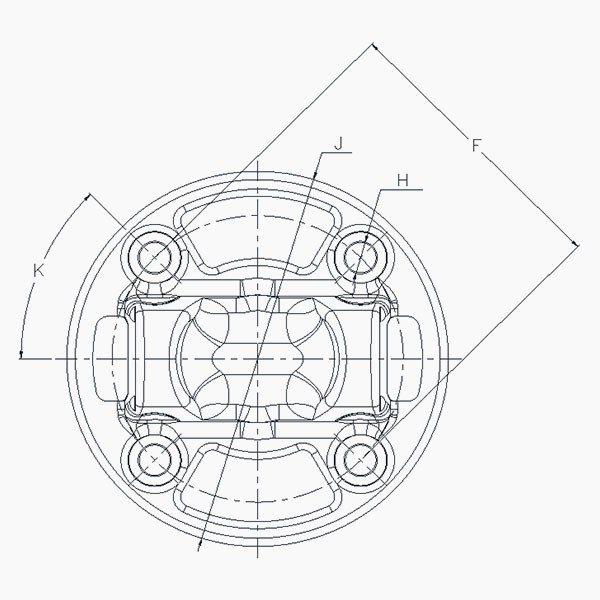

Outside Yoke Dim. ( A )135
Groove Length ( B )129.1±0.05
Yoke Bearing Dim. ( C )Ø34.909±0.013
Flange Face ( D )60
Pilot Dia. ( E )Ø95.217±0.013
Bolt Hole Length ( F )Ø120.65
Flange Swing Dia. ( G )
Bolt Hole Dia. ( H )Ø12.75±0.13
Inner Dia. ( I )Ø168
Outer Dia. ( J )Ø178
Angle ( K )45˚
In Side Length ( L )
Number of Bolt Hole4
MaterialCasting
Weight1.623 kg
Package Qty.
