2-SK023
Model
RAM Heavy Duty
Part No.2-SK023
ProgramFCA RAM HD
Series1550

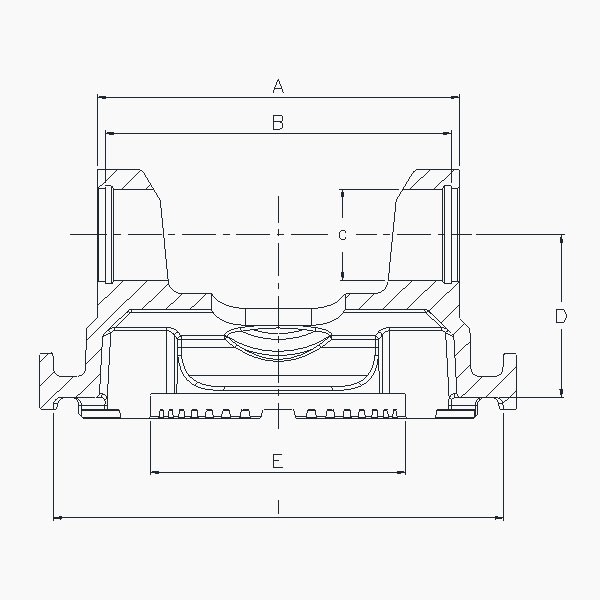

Outside Yoke Dim. ( A )135±0.5
Groove Length ( B )129.1±0.05
Yoke Bearing Dim. ( C )Ø34.909±0.013
Flange Face ( D )62
Pilot Dia. ( E )Ø95.4±0.06
Bolt Hole Length ( F )Ø135
Flange Swing Dia. ( G )
Bolt Hole Dia. ( H )Ø10.75±0.13
Inner Dia. ( I )Ø168
Outer Dia. ( J )Ø178
Angle ( K )45˚
In Side Length ( L )
Number of Bolt Hole4
MaterialCasting
Weight2.885 kg
Package Qty.
