2-SK002
Model
Transit
Part No.2-SK002
ProgramFord Transit (V363 program)
Series1350

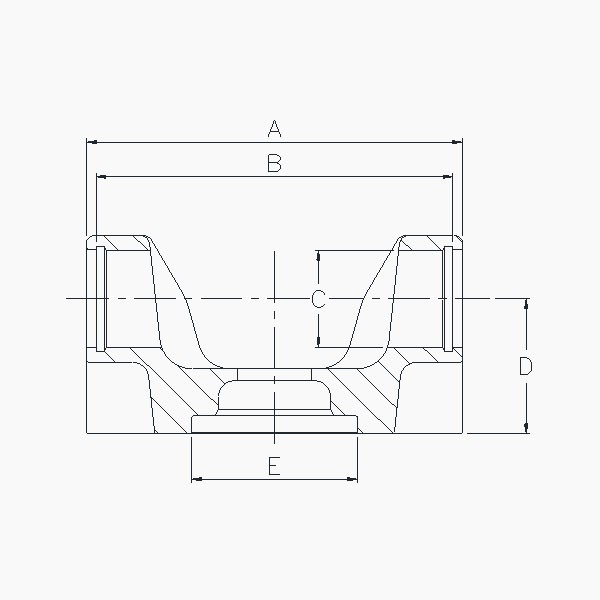

Outside Yoke Dim. ( A )101±0.05
Groove Length ( B )95±0.05
Yoke Bearing Dim. ( C )Ø30.181±0.013
Flange Face ( D )41.9
Pilot Dia. ( E )Ø50.8±0.013

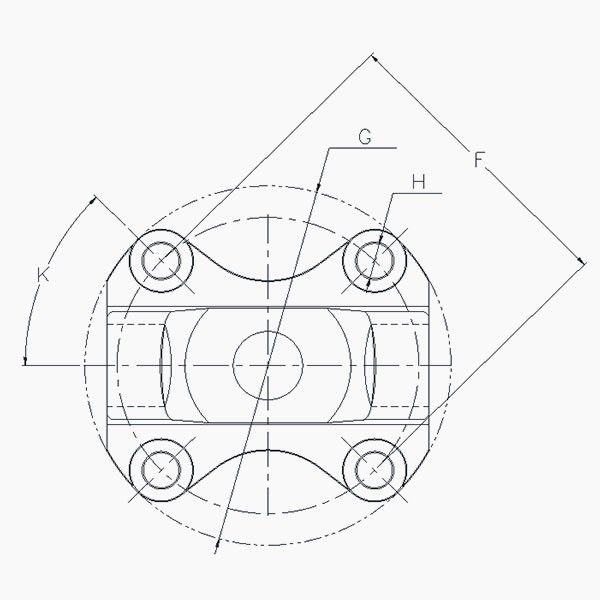

Bolt Hole Length ( F )Ø107.95
Flange Swing Dia. ( G )Ø130.04
Bolt Hole Dia. ( H )Ø12.75±0.013
Inner Dia. ( I )
Outer Dia. ( J )
Angle ( K )45˚
In Side Length ( L )
Number of Bolt Hole4
MaterialCasting
Weight0.818 kg
Package Qty.
