2-SK001
Model
Econoline
Part No.2-SK001
ProgramFord VN127
Series1410

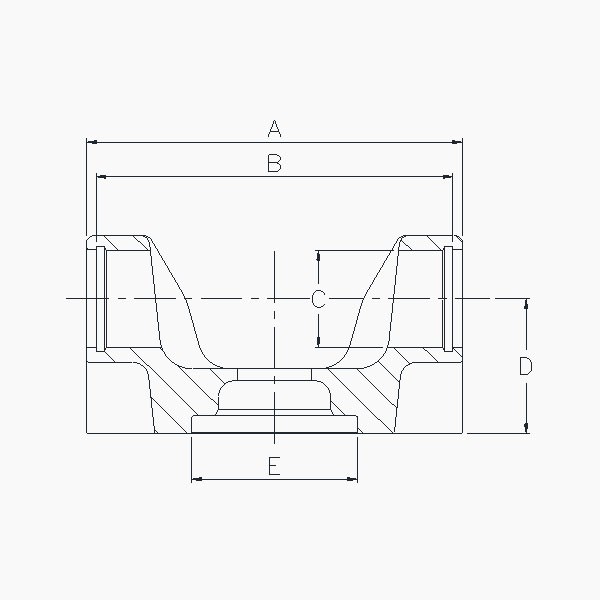

Outside Yoke Dim. ( A )115±0.8
Groove Length ( B )109.3±0.05
Yoke Bearing Dim. ( C )Ø30.188 +0 / -0.018
Flange Face ( D )42
Pilot Dia. ( E )Ø50.8±0.013

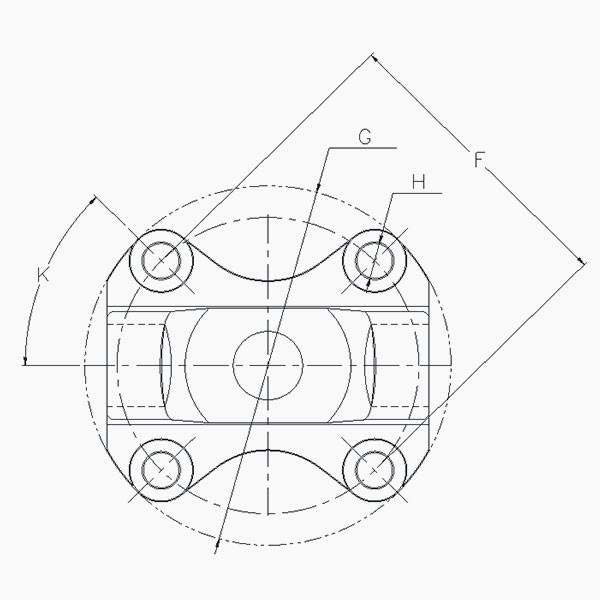

Bolt Hole Length ( F )Ø107.95
Flange Swing Dia. ( G )Ø131
Bolt Hole Dia. ( H )Ø12.88 +0 / -0.25
Inner Dia. ( I )
Outer Dia. ( J )
Angle ( K )45˚
In Side Length ( L )
Number of Bolt Hole4
MaterialCasting
Weight0.882 kg
Package Qty.
