55-SK004
Model
Transit
Part No. 55-SK004
Spline
Spec.

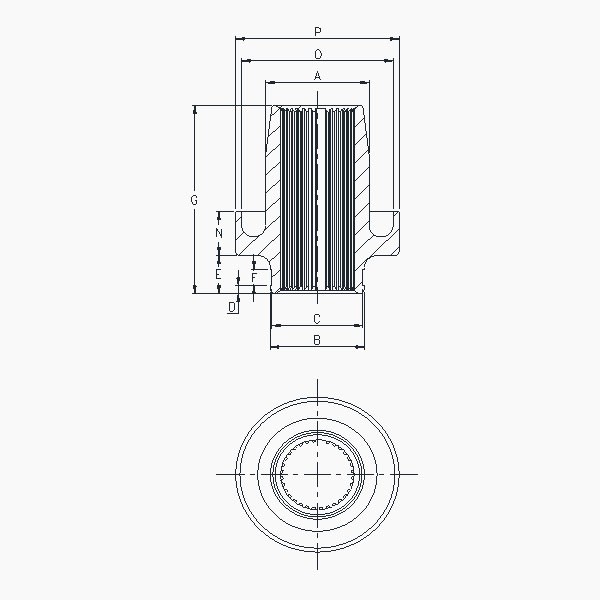

 Type Major Dia. Fit
No. of Teeth 32
Module 24 / 48
Pressure Angle 30°
Major Dia. Ø34.950 ~ Ø34.925
Minor Dia. Ø32.809 ~ Ø32.682
Over Pin Dia.
Pin Dia.
Outer Dia. ( A ) Ø48.1
Outer Dia. ( B ) Ø44.4
Groove Dia. ( C ) Ø42.9
Length ( D ) 6
Length ( E ) 19
Groove Width ( F ) 4
Length ( G ) 94
Length ( H )
Length ( I )
Inner Dia. ( J )
Outer Dia. ( K )
Length ( M )
Length ( N ) 22
Inner Dia. ( O ) Ø71.6 ±0.1
Outer Dia. ( P ) Ø77.2 ±0.1
Material Forging
Weight 0.858 kg
Package Qty.
