55-SK002
Model
Transit
Part No. 55-SK002
Spline
Spec.
 Type Flat Root Top Fit
No. of Teeth 32
Module 24 / 48
Pressure Angle 30°
Major Dia. Ø34.963 ~ Ø34.925
Minor Dia. Ø32.809 ~ Ø32.682
Over Pin Dia.
Pin Dia.

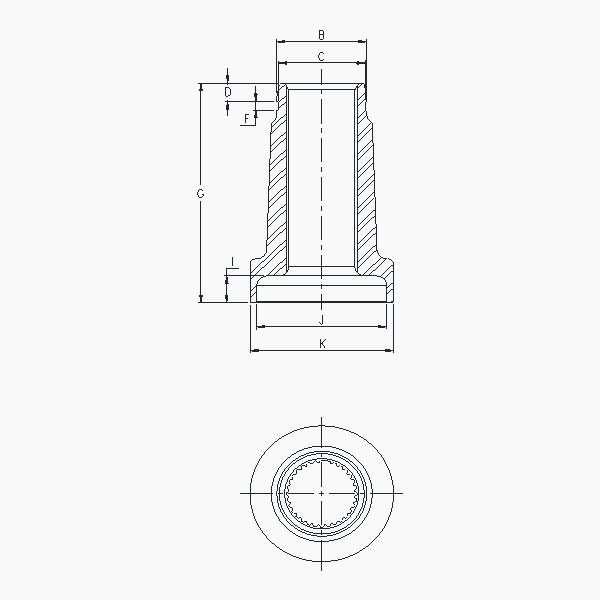

Outer Dia. ( A )
Outer Dia. ( B ) Ø44.5
Groove Dia. ( C ) Ø42.9
Length ( D ) 9.6
Length ( E )
Groove Width ( F ) 4.6
Length ( G ) 115
Length ( H )
Length ( I ) 14
Inner Dia. ( J ) Ø64.3 ±0.2
Outer Dia. ( K ) Ø71.1 ±0.2
Length ( M )
Length ( N )
Inner Dia. ( O )
Outer Dia. ( P )
Material Forging
Weight 1.115 kg
