6-SK001
Model
Malibu, XT4, Envision, Insignia, Regal
Part No. 6-SK001

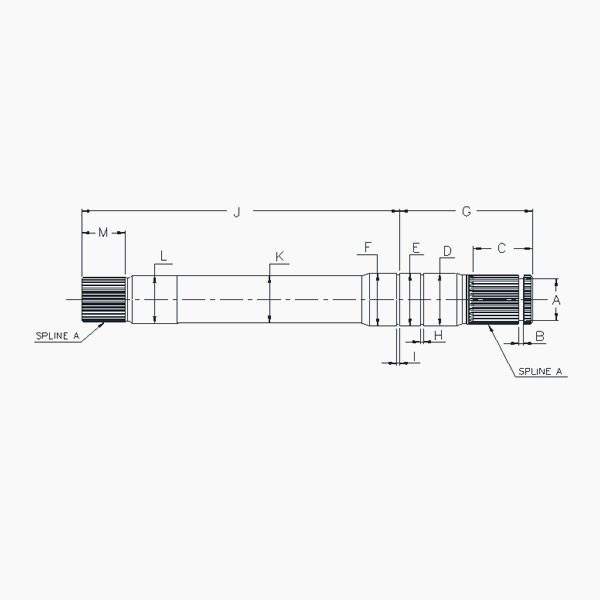

Spline A Spline B
Spline
Spec.		 Type Side Fit
No. of Teeth 27
Module 1.0583
Pressure Angle 45°
Major Dia. Ø29.40 ~ Ø29.15
Minor Dia. Ø27.48 ~ Ø27.28
Over Pin Dia. Ø31.825 ~ Ø31.780
Pin Dia. Ø2.0
Groove Dia. ( A )Ø23.80 ~ Ø23.65
Groove Width ( B )2.65 ~ 2.40
Spline Length ( C )35.4 ~ 34.4
Outer Dia. ( D )Ø29.87 ~ Ø29.83
Outer Dia. ( E )Ø30.015 ~ Ø30.002
Outer Dia. ( F )Ø30.5 ~ Ø30.0
Length ( G )76.03 ~ 75.63
Groove Width ( H )1.524 ~ 1.424
Groove Width ( I )1.524 ~ 1.424
Length ( J )428.5 ~ 427.5
Outer Dia. ( K )Ø28.8 ~ Ø28.3
Outer Dia. ( L )Ø29.951 ~ Ø29.928
Spline Length ( M ) 23
MaterialRound Bar
Weight2.6 kg
