40-SK029
Model
Spark, Aveo, Cobalt, Spin, Encore, Onix, Prisma
Part No. 40-SK029

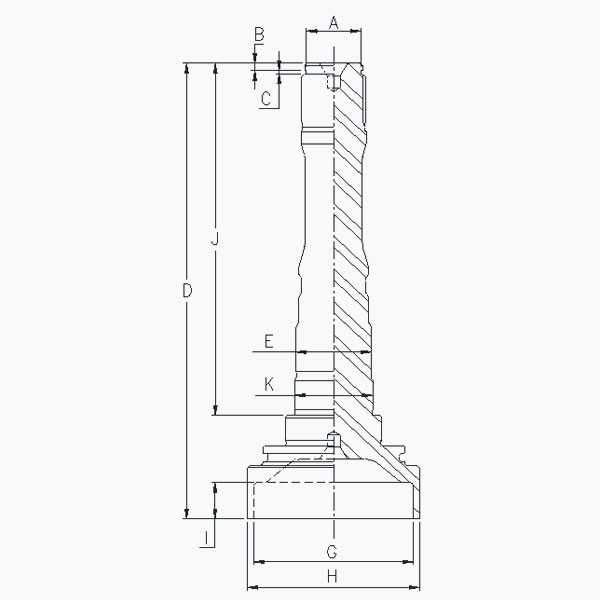

Spline Spec.
Flange Face ( D ) 30
Pilot Dia. ( E ) 32 / 64
Bolt Hole Length ( F ) 37.5°
Flange Swing Dia. ( G ) Ø24.613 +0 / -0.25
Bolt Hole Dia ( H ) Ø22.535 +0.2 / -0
Number of Bolt Hole Ø26.226 +0.071 / +0.009
Material Ø1.524
Groove Dia. ( A ) Ø21 +0 / -0.21
Length ( B ) 3 ±0.3
Groove Width ( C ) 1.35 +0.14 / -0
Length ( D ) 187 ±0.5
Outer Dia. ( E ) Ø29.2 +0.002 / -0.008
Length ( F )
Inner Dia. ( G ) Ø61.2 +0 / -0.1
Outer Dia. ( H ) Ø66 +0.1 / -0
Length ( I ) 15 ±0.2
Length ( J ) 144.5 ±0.5
Outer Dia. ( K ) Ø30 ±0.011
Outer Dia. ( M )
Length ( N )
Length ( O )
Thread Spec. ( Q )
Length ( R )
Spline Length ( S )
Coating Length ( T )
Angle ( U )
Hole Dia. ( V )
Material Forging
Weight 0.954 kg
Package Qty.
