40-SK023
Model
Spark, Aveo, Cobalt, Spin, Encore, Onix, Prisma
Part No. 40-SK023

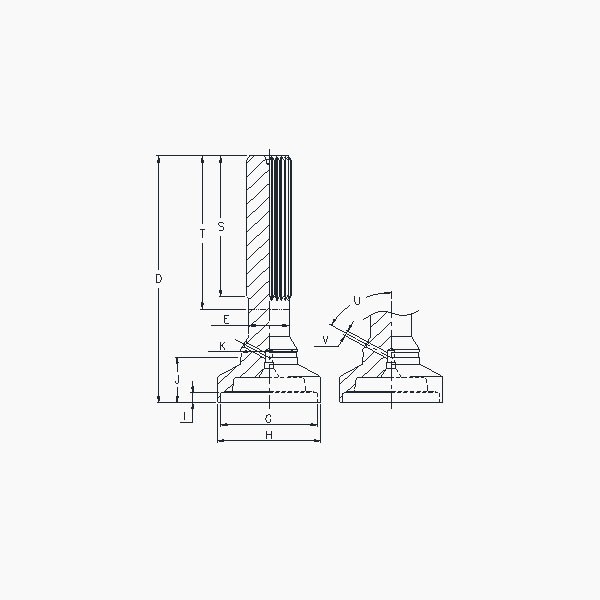

Spline Spec. Major Dia. Fit
Flange Face ( D ) 24
Pilot Dia. ( E ) 16 / 32
Bolt Hole Length ( F ) 30°
Flange Swing Dia. ( G ) Ø39.684 ~ Ø39.659
Bolt Hole Dia ( H ) Ø35.61 Min.
Number of Bolt Hole
Material
Groove Dia. ( A )
Length ( B )
Groove Width ( C )
Length ( D ) 228.2 ±0.15
Outer Dia. ( E ) Ø35.12 ±0.12
Length ( F )
Inner Dia. ( G ) Ø83.68 ±0.1
Outer Dia. ( H ) Ø89.7 ±0.1
Length ( I ) 9 Min.
Length ( J ) 42.2
Outer Dia. ( K ) Ø49.5
Outer Dia. ( M )
Length ( N )
Length ( O )
Thread Spec. ( Q )
Length ( R )
Spline Length ( S ) 130.0
Coating Length ( T ) 135 Min.
Angle ( U ) 60˚
Hole Dia. ( V ) Ø89.7 ±0.1
Material Forging
Weight 2.5 kg
Package Qty.
