40-SK017
Model
Spark, Aveo, Cobalt, Spin, Encore, Onix, Prisma
Part No. 40-SK017

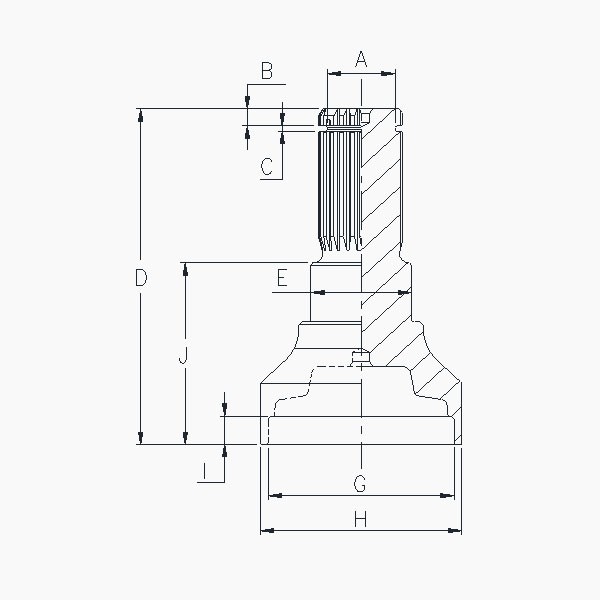

Spline Spec. Side Fit
Flange Face ( D ) 23
Pilot Dia. ( E ) 24 / 48
Bolt Hole Length ( F ) 45°
Flange Swing Dia. ( G ) Ø25.448 ~ Ø25.273
Bolt Hole Dia ( H ) Ø23.284 ~ Ø23.056
Number of Bolt Hole Ø27.645 Min.
Material Ø2.032
Groove Dia. ( A ) Ø20.3
Length ( B ) 5 Min.
Groove Width ( C ) 1.75 ±0.1
Length ( D ) 109.1
Outer Dia. ( E ) Ø30 +0.011 / +0.002
Length ( F )
Inner Dia. ( G ) Ø55.4 ±0.08
Outer Dia. ( H ) Ø60.0 ±0.08
Length ( I ) 9 Min.
Length ( J ) 59.1
Outer Dia. ( K )
Outer Dia. ( M )
Length ( N )
Length ( O )
Thread Spec. ( Q )
Length ( R )
Spline Length ( S )
Coating Length ( T )
Angle ( U )
Hole Dia. ( V )
Material Forging
Weight 0.57 kg
Package Qty.
