8-SK002
Model
Spark, Aveo, Cobalt, Spin, Encore, Onix, Prisma
Part No. 8-SK002
 Plug Type
Spline
Spec		 Type Fillet Root Side Fit
No. of Teeth 22
Module1.0583
Pressure Angle 45°
Major Dia. Ø24.99
Minor Dia. Ø22.78 ~ Ø22.66
Over Pin Dia. Ø20.297
Pin Dia. Ø2.032

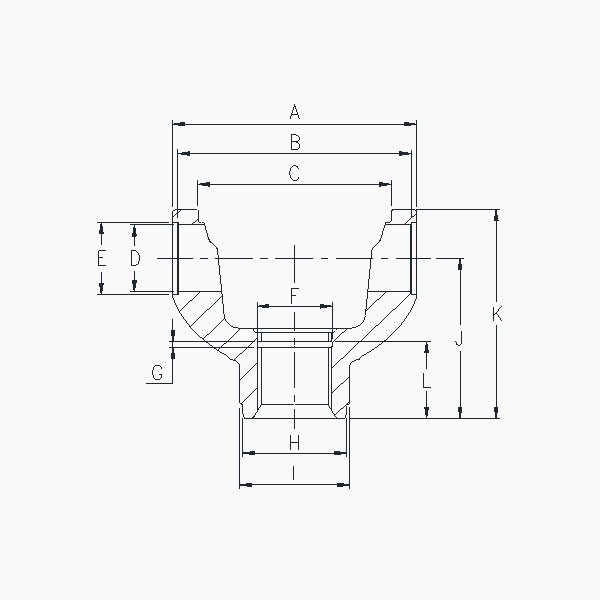

Length ( A ) 82.55 ~ 82.05
 Groove Length ( B ) 79.1 ~ 78.7
Inside Length ( C ) 65.5 ~ 65.0
Yoke Bearing Dia. ( D ) Ø24.041 ~ Ø24.020
 Inner Dia. ( E ) Ø26.3 ~ Ø25.8
 Groove Dia. ( F ) Ø25.57~ Ø25.27
Groove Width ( G ) 2.1 ~ 1.9
Outer Dia. ( H ) Ø35.05~ Ø34.95
 Outer Dia. ( I ) Ø37.1~ Ø37.0
Length ( J ) 57.35
Length ( K ) 75.0 ~ 74.7
 Length ( L ) 25.64 ~ 25.34
Length ( M )
 Length ( N )
 Inner Dia. ( O )
  Length ( P )
  Material Forging
  Weight 0.393 kg
  Package Qty.
