9-SK010
Model
ATS, CTS, CT5, CT4
 Part No. 9-SK010

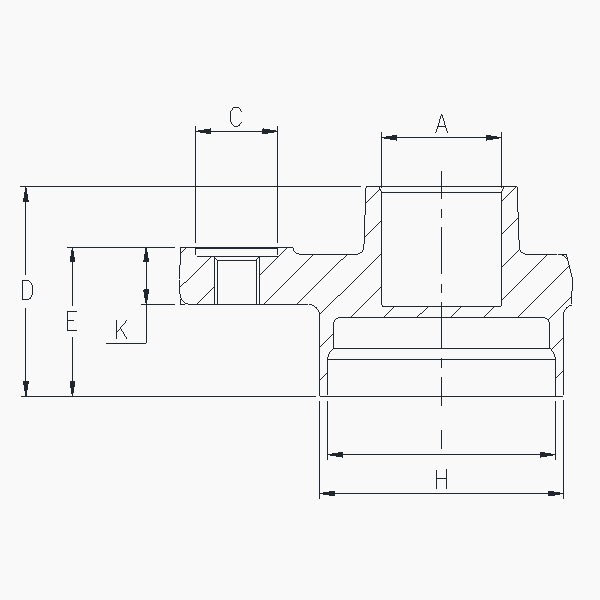

 Inner Dia. ( A ) Ø32.025 ~ Ø32.000
 Bolt Hole Dia. ( B )
 Count Boring Dia. ( C ) Ø22.034 ~ Ø22.016
  Length ( D ) 57
 Length ( E ) 40.6

 Length ( F )


 Length ( G )
Outer Dia. ( H ) Ø60.8 ~ Ø60.6
  Inner Dia. ( I ) Ø56.5 ~ Ø56.3
Length ( J )
  Length ( K ) 15.6

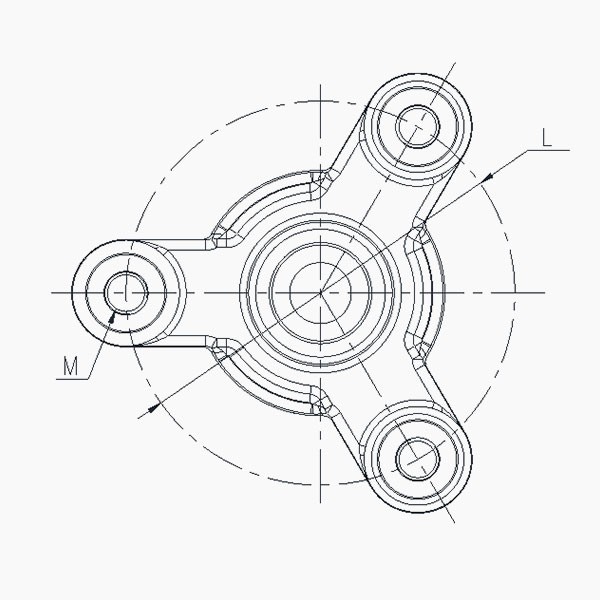

Bolt Circle ( L ) Ø110
 Tap Spec. ( M ) M12 X 1.75 - 6H　
 Material Forging
Weight 0.84 kg
 Package Qty.
