9-SK004
Model
ATS, CTS, CT5, CT4
 Part No. 9-SK004

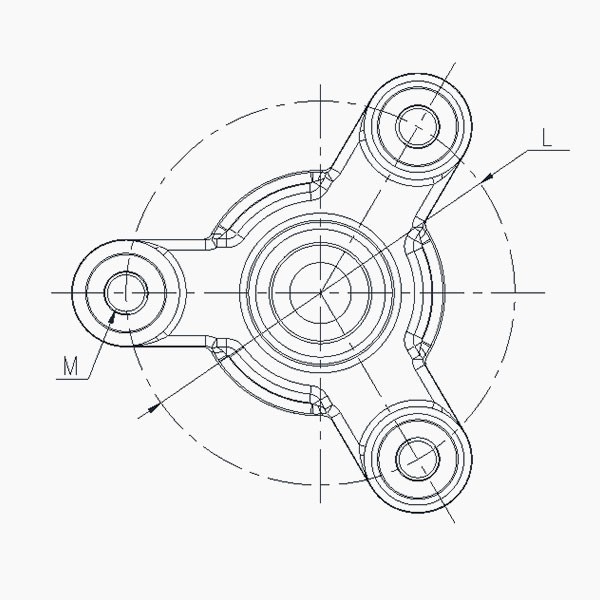

 Inner Dia. ( A ) Ø32.025 ~ Ø32.000
 Bolt Hole Dia. ( B )
 Count Boring Dia. ( C ) Ø22.034 ~ Ø22.016
  Length ( D ) 57
 Length ( E ) 40.6

 Length ( F )



 Length ( G ) 10.00
Outer Dia. ( H ) Ø75.9 ~ Ø75.7
  Inner Dia. ( I ) Ø69.6 ~ Ø69.4
Length ( J )
  Length ( K ) 15.6
Bolt Circle ( L ) Ø110
 Tap Spec. ( M ) M12 X 1.75 - 6H　
 Material Forging
Weight 1.04 kg
 Package Qty.
