9-SK002
Model
Explorer, Aviator
Part No. 9-SK002

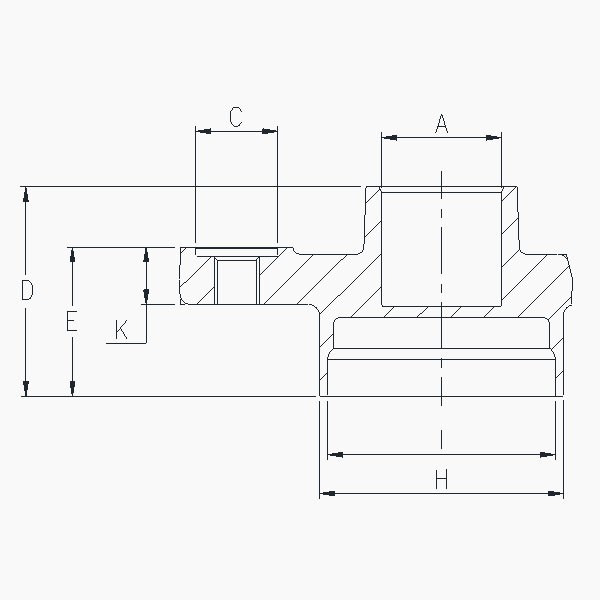

Inner Dia. ( A ) Ø32.025 ~ Ø32.000
Bolt Hole Dia. ( B )
Count Boring Dia. ( C ) Ø22.034 ~ Ø22.016
Length ( D ) 57.5 ~ 56.5
Length ( E ) 41.1 ~ 40.1

Length ( F )


Length ( G )
Outer Dia. ( H ) Ø65.55 ~ Ø65.45
Inner Dia. ( I ) Ø61.15 ~ Ø61.05
Length ( J )
Length ( K ) 15.3

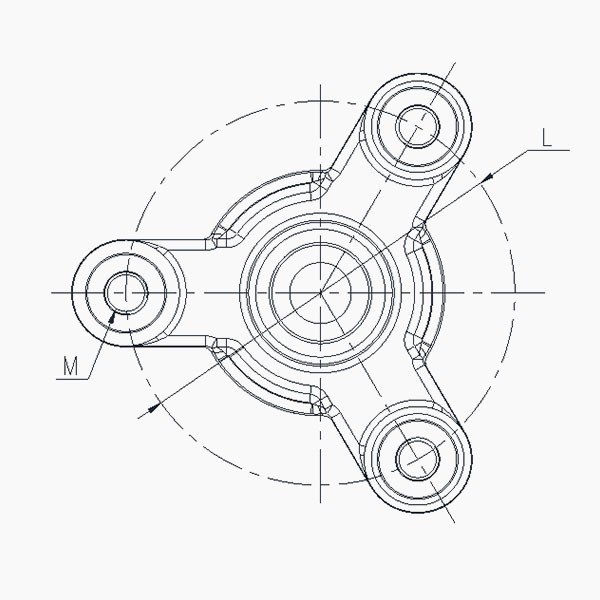

Bolt Circle ( L ) Ø110
Tap Spec. ( M ) M12 X 1.5 - 6H　
Material Forging
Weight 0.88 kg
Package Qty.
