1-SK008
Model
ATS, CTS, CT5, CT4
Part No. 1-SK008
Outer Dia. ( A ) Ø55.95 ~ Ø55.83
Spline
Spec.
( B )		 Type Major Dia. Fit
No. of Teeth 32
Module 24 / 48
Pressure Angle 30˚
Major Dia. Ø34.659 ~ Ø34.635
Minor Dia. Ø32.935 ~ Ø32.808
Over Pin Dia. Ø30.641 Ref.
Pin Dia. Ø2.032
Length ( C ) 55.78
Length ( D )
Inner Dia. ( E )
Outer Dia. ( F )

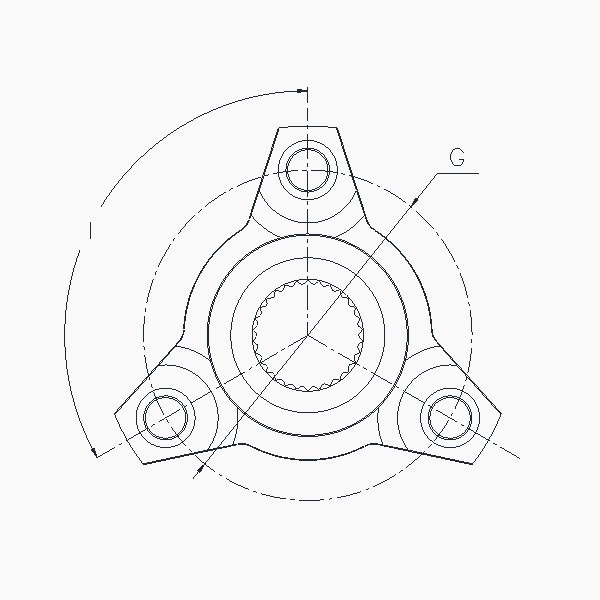

Hole P . C . D ( G ) Ø110
Tap Spec. ( H )
Angle ( I ) 120˚
Groove Dia. ( J )
Hole Dia. ( K ) Ø12.20 ~ Ø12.05
Hole P . C . D ( L )
Hole Dia. ( M ) Ø22.034 ~ Ø22.016
Length ( N ) 55.13 ~ 54.93
Length ( O )
Groove Dia. ( P )
Number Of Bolt Hole 3
Material Forging
Weight 1.1 kg
Package Qty.
