1-SK001
Model
RAM Heavy Duty
Part No. 1-SK001

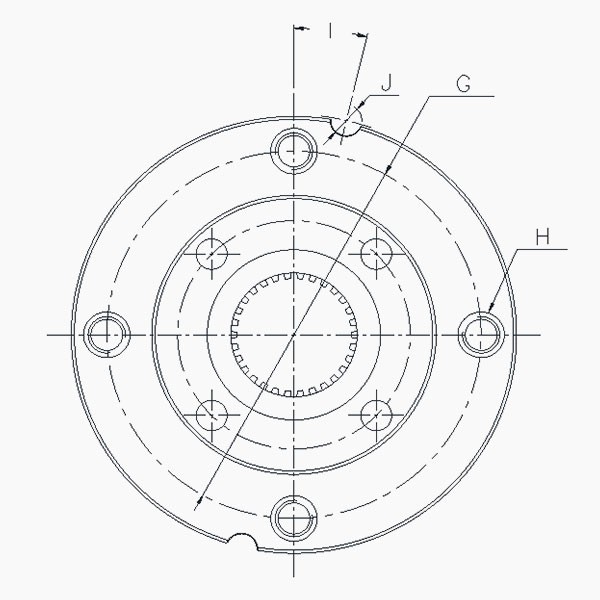

Outer Dia. ( A ) Ø68.06 ~ Ø67.94
Spline
Spec.
( B )		 Type Fillet Root Side Fit
No. of Teeth 30
Module 20 / 40
Pressure Angle 37˚30'
Major Dia. Ø40.132 ~ Ø40.386
Minor Dia. Ø37.084 ~ Ø37.211
Over Pin Dia. Ø35.151 Ref.
Pin Dia. Ø2.1946
Length ( C ) 58.6
Length ( D ) 13.27
Inner Dia. ( E ) Ø95.308 ~ Ø95.251
Outer Dia. ( F ) Ø143.75 ~ Ø143.25
Hole P . C . D ( G ) Ø120.64
Tap Spec. ( H ) M12 x 1.75 - 6H
Angle ( I ) 13.5˚
Groove Dia. ( J ) Ø10.25 ~ Ø9.75
Hole Dia. ( K )
Hole P . C . D ( L )
Hole Dia. ( M )
Length ( N )
Length ( O )
Groove Dia. ( P )
Number Of Bolt Hole 4
Material Casting
Weight 2.3 kg
Package Qty.
