2-SK019
Model
MX3
Part No.2-SK019
ProgramMazda J34A
Series
Outside Yoke Dim. ( A )

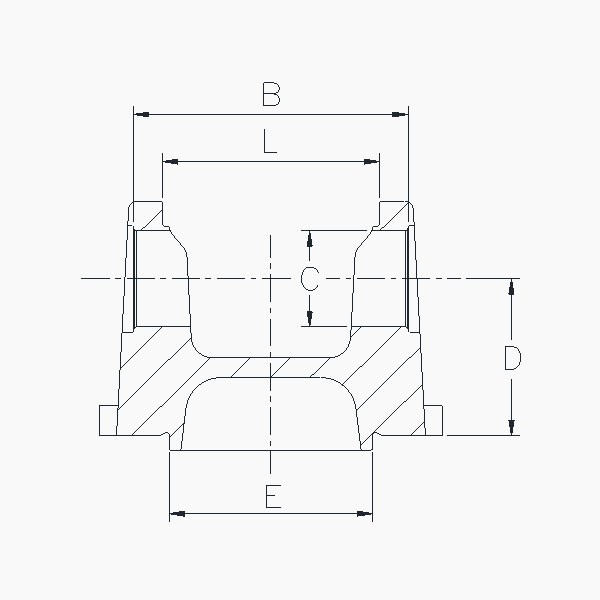

Groove Length ( B )62 +0.3 / -0.1
Yoke Bearing Dim. ( C )Ø22F7 +0.041 / +0.020
Flange Face ( D )30±0.1
Pilot Dia. ( E )Ø70g7 -0.01 / -0.04

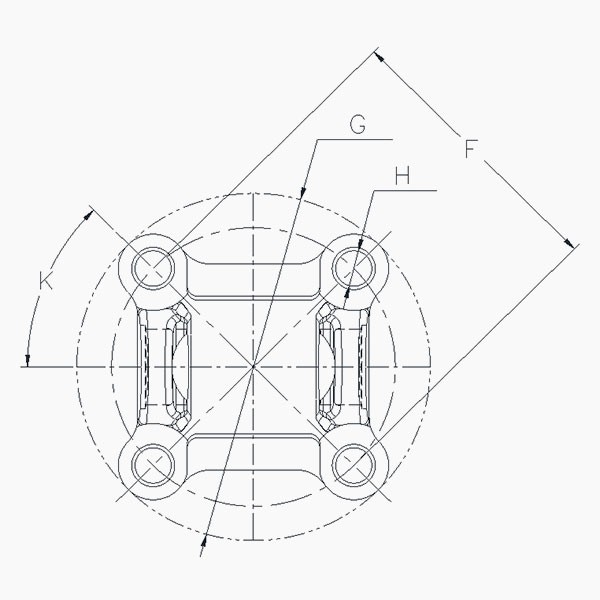

Bolt Hole Length ( F )Ø108.89
Flange Swing Dia. ( G )Ø128.89
Bolt Hole Dia. ( H )Ø8.1 +0.3 / - 0
Inner Dia. ( I )
Outer Dia. ( J )
Angle ( K )45˚
In Side Length ( L )49±0.2
Number of Bolt Hole4
MaterialForging
Weight0.526 kg
Package Qty.
