2-SK007
Model
RAM
Part No.2-SK007
ProgramFCA DT TR
Series1410

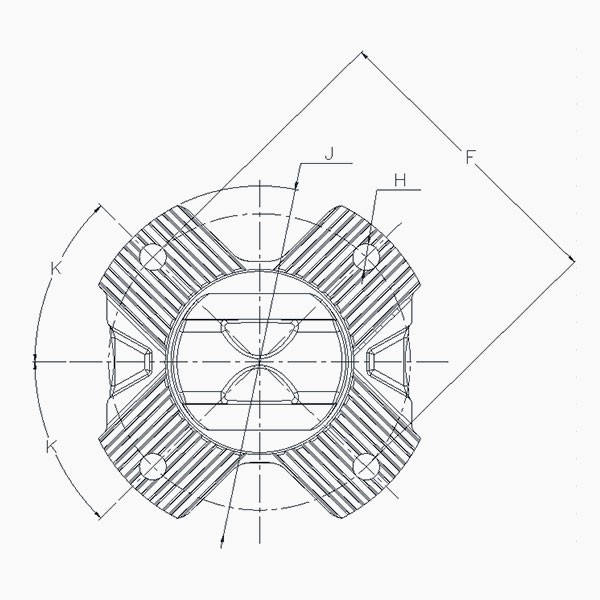

Outside Yoke Dim. ( A )115±0.5
Groove Length ( B )109.3±0.05
Yoke Bearing Dim. ( C )Ø30.181±0.013
Flange Face ( D )59.5
Pilot Dia. ( E )Ø75.42±0.06
Bolt Hole Length ( F )Ø120.65
Flange Swing Dia. ( G )
Bolt Hole Dia. ( H )Ø10.75±0.13
Inner Dia. ( I )
Outer Dia. ( J )Ø143.25±0.25
Angle ( K )45˚
In Side Length ( L )
Number of Bolt Hole4
MaterialCasting
Weight1.60 kg
Package Qty.
