2-SK006
Model
Ford F-150
Part No.2-SK006
ProgramFord P702
Series1350

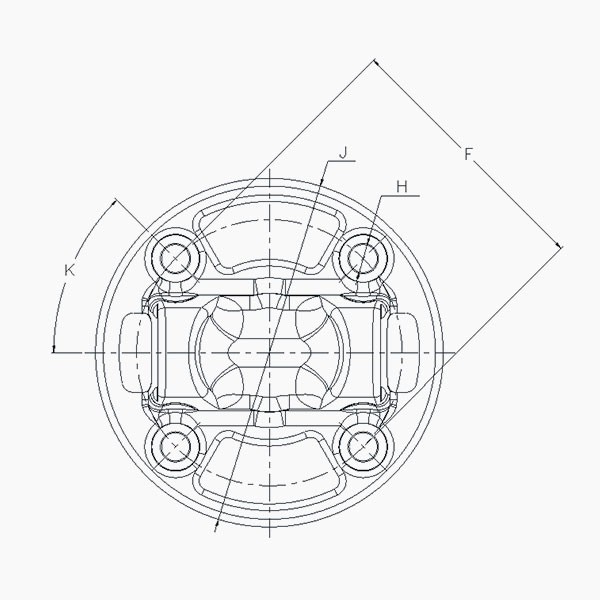

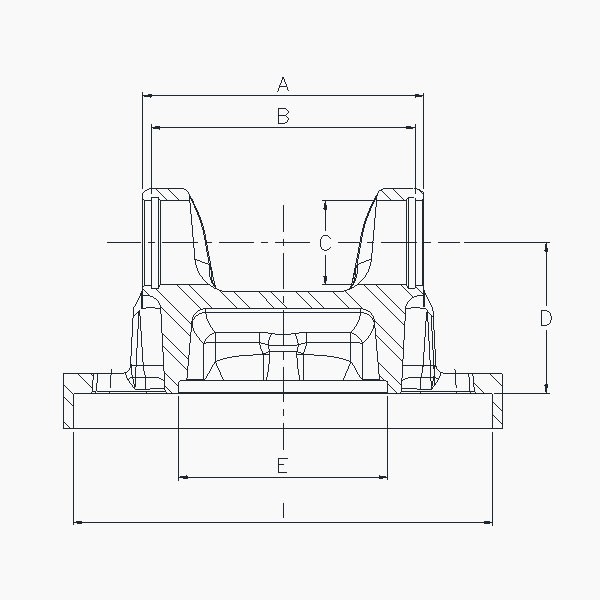

Outside Yoke Dim. ( A )101±0.25
Groove Length ( B )95±0.05
Yoke Bearing Dim. ( C )Ø30.181±0.013
Flange Face ( D )41.9
Pilot Dia. ( E )Ø50.8±0.013
Bolt Hole Length ( F )Ø107.95
Flange Swing Dia. ( G )
Bolt Hole Dia. ( H )Ø12.75±0.13
Inner Dia. ( I )Ø130±0.25
Outer Dia. ( J )Ø142±0.25
Angle ( K )45˚
In Side Length ( L )
Number of Bolt Hole4
MaterialCasting
Weight1.164 kg
Package Qty.
